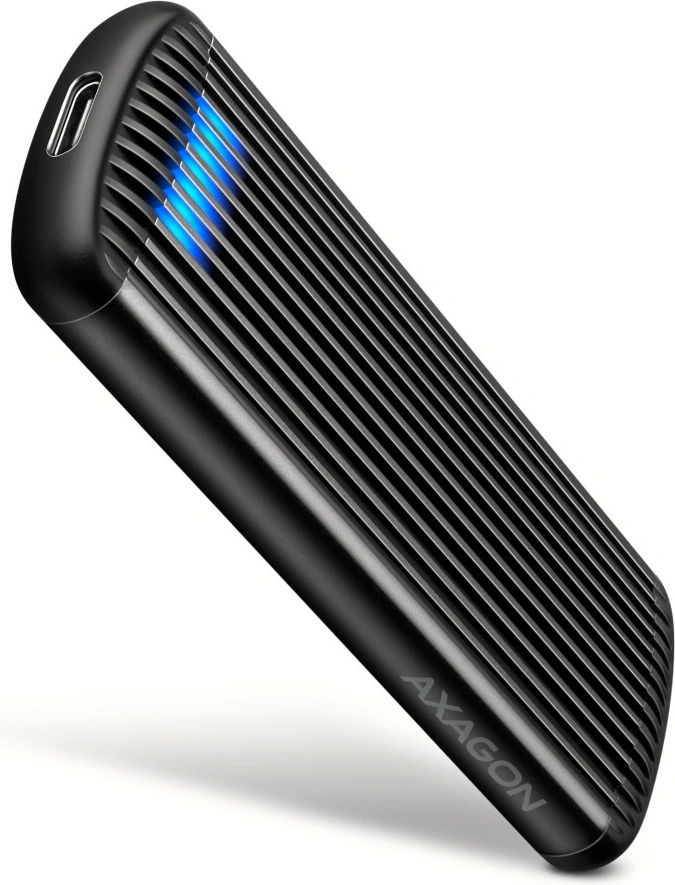

Aluminum external AXAGON EEM2-SC RIBBED box with USB 10Gbps interface designed for M. 2 NVMe SSDs. A stable and fast connection is ensured by a reversible USB-C connector. In the package you will find a USB-C -> USB-C cable to connect the box to your computer.

Thanks to the USB 10Gbps interface, the transmission rate is up to 10 Gb/s. The external M. 2 box supports modern features such as UASP, TRIM and enables reading S. M. A. R. T. disk status monitoring information.

The advantage of the box is the attachment of four different lengths of SSD cards - 30, 42, 60 and 80 mm. M. 2 drives can be single-sided or double-sided. The box does not limit the capacity of inserted SSD.

Specifications

Input:
USB 10Gbps (USB 3.2 Gen 2), connector USB-C female.
Compatible with USB 5Gbps, USB 20Gbps, USB 40Gbps and Thunderbolt 3/4/5.

Device support:
NVMe M. 2 SSD disks,
designed for M key or B+M key card formats,
NGFF 75-pin M key slot for M. 2 drives.

Other features:
Supports transmission rates 10.000 / 5.000 Mbit/s.
Support for NVMe (PCI Express) M. 2 SSD drives without maximum capacity limitations.
Support of M. 2 disks of these sizes – 2230, 2242, 2260 and 2280 mm.
Support of both one-sided and double-sided M. 2 SSDs.
Compliant with PCI Express Base Specification Revision 3.1a specification.
Compliant with NVM Express 1.3 specification.
Compliant with USB Mass Storage Class specification.
The real box bandwidth / transmission rate is about 1000 MB/s (1 GB/s), it is given by the limits of the USB 3.2 Gen 2 interface.
Supports BOT (Bulk-Only Transport).
Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
Supports TRIM functionality to limit gradual degradation of the SSD performance over time.
Supports S. M. A. R. T. (Self-Monitoring, Analysis, and Reporting Technology) system monitoring disk condition.
SSD boot support in external box.
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Power supply via USB bus up to 900mA from one USB port is sufficient in all cases.
Blue LEDs indicating connection to the computer's USB port (steady light) and data transfer (flashing).
Heavy-duty aluminium body and thermal conductive pad helps to better cooling the M. 2 SSD disk.
Higher box surface temperature is not a defect - thanks to the aluminum body, the heat generated by the disk operation is better drained and transferred to the environment.
Connection via USB 3.2 Gen 2 type C female connector.
USB type C male / USB type C male cable length 30 cm in the package.

Other data:
Dimensions: 116 × 39 × 14 mm (W × D × H).
Weight: 47 g (without cable, without disk)

Supported operating systems:
Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
Compatibility depends on the operating system and device manufacturer support.
Note: when Windows 7 used it is necessary to check OS support and driver availability with the M. 2 SSD manufacturer.
