EC700G M. 2 PCIe/SATA SSD Enclosure

● Stylish geometric design with RGB lighting

● Compatible with PCIe and SATA SSDs

● Supports multiple M. 2 SSD sizes

● Supports USB 3.2 Gen2

● Tool-free assembly

● Works with latest game consoles

● Multiple platform support





Bright and Beautiful

Sporting dazzling RGB lighting and elegant geometric forms, the EC700G gives you a device with an understated sense of flair.





Compatible with PCIe and SATA SSDs

Whether you've got an M. 2 PCIe or SATA SSD, the EC700G is compatible with them all.





Different M. 2 Sizes Supported

The EC700G not only works with the most common M. 2 2280 dimensions, but also M. 2 2242 and M. 2 2230 too.







Fast USB 3.2 Gen2 Speeds

With support for USB 3.2 Gen2 and Type-C, an EC700G equipped with a SSD can reach speeds of up to 1000MB/s*, which is about 12.5 times faster than ordinary external hard drives**. That means it'll only take you 20 seconds to transfer a 10GB movie.



* A PCIe Gen3 x4 (NVMe 1.3)  M. 2 SSD or higher is required. Also, the host device must support USB 3.2 Gen 2 and a UASP driver must be installed. Actual performance may vary depending on the host device and software configurations.

** Based on comparison with ADATA external HDDs





Specifications:

Color

Black

Compatibility

SSD: M. 2 PCIe/NVMe(M Key) / SATA (B+M Key)

Form Factor: 2230/2242/2280

Dimensions (L x W x H)

112 x 45 x 12.24mm / 4.4 x 1.77 x 0.48inch

Weight

90g / 3.2oz

Interface

USB 3.2 Gen2 Type-C

Operating system requirements

Windows 8 / 8.1 / 10

Mac OS X 10.6 or later

Linux Kernel 2.6 or later

Android 5.0 or later

Operating Temperature

0°C (32°F) to 50°C (122°F)

Operating Voltage

DC 5V, 900mA

Accessories

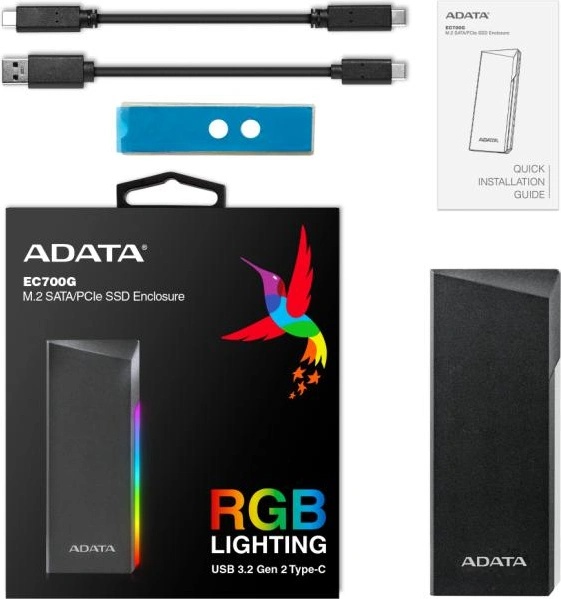

USB 3.2 Type-C to C cable, USB 3.2 Type-C to A cable, Thermal Pad, Quick Installation Guide, Thumbscrew
