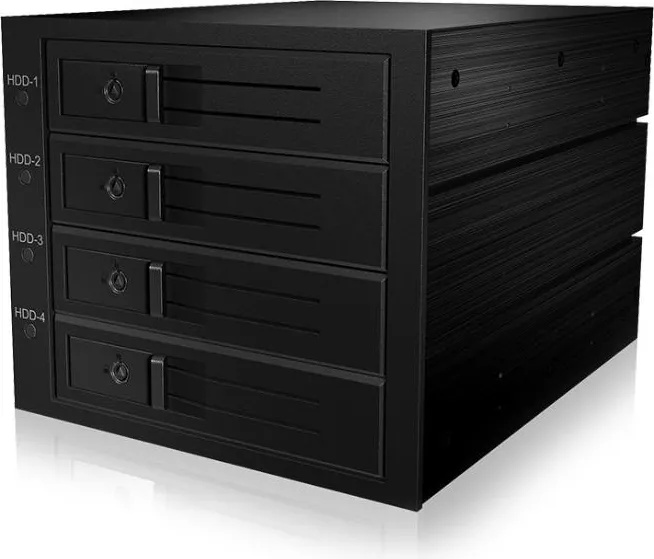

For heaviest server duty

The HDD backplanes are well-proven in extremely hard server duty. Even with highest transfer rates they run very smoothly. That’s why we recommend them for the demanding duty in RAID systems. Accordingly elaborate is the temperature control. The aluminium parts dissipate the heat. The 80-mm fan operates reliably and silently and the operating mode is easily adjusted. If high temperature is detected there are optical and acoustic warning signals. All moving parts are layed out for strongest strain. The trays and their locking mechanism are extremely fitting. They slide without resistance. The aluminium parts are electropolished.

Backplane for 2x 5.25" bay

For 3x 3.5" SATA or SAS HDD

1x 80x80 mm fan

HDD trays with lock to prevent accidental and unauthorized access

Stress resistant

The IB-56X Series is built for heavy duty. The best available materials were used in this enclosure which makes it the ideal 3.5" HDD solution for demanding environments. for additional security, a lock was added.



Cool

The high quality metal dissipate the created heat by passive convection to the environment. The active convection is done using an 80 mm fan. The big fan swirls slowly which makes it quieter.



Always up to date

Up to three 3.5" SATA/SAS HDDs find a home in this backplane. Not even SAS hard disks have to stay out in the cold. Optical and auditory signals alert regarding the HDD and fan state. The temperature alarm signal can be set on three possibilities - 55° C, 60° C, 65° C.

  Details :

Dimension of article: 215 x 148 x 86 mm

Net weight: 1,320 kg

Material: Aluminium

Colour: Black

Fan: 1x 80x80 mm

HDD size (inch): 3,5"

HDD size (cm): 8,89 cm

HDD capacity: No limit

HotSwap: Yes

Plug

HDD interface: 3x SAS / SATA I/II/III

Host interface: 3x SATA I/II/III

Operating system: Supports Windows

LED: Power (blue), HDD Access (orange), On / Off, Alarm

Lock: Yes

Продукт известен още и като IB 564 SSK, IB564SSK, IB 564SSK, IB-564 SSK
